Are You Frustrated That Your 12V CCTV Camera Keeps Restarting?

If your 12V CCTV camera keeps restarting, it can be highly frustrating, especially when it works normally for a while before suddenly rebooting. Although the camera itself could have a fault, unstable power is one of the first things worth investigating.

For a 12V CCTV system, the power adapter, cable and DC connector all form part of the power supply path. A problem with any of these components can interrupt the power reaching the camera and cause repeated restarts.

Before replacing the camera, check whether the power supply is providing the correct voltage and enough current capacity. Then inspect the cable, connector and installation conditions.

Why Does a 12V CCTV Camera Keeps Restarting?

A 12V CCTV camera may keep restarting because it is not receiving stable power. Common causes include an underpowered or failing adapter, voltage drop through a cable, a loose connector, overheating or a fault within the camera.

The first step is to check the camera’s input requirements. If it requires 12V DC, the power adapter should provide the correct 12V output. The adapter should also have sufficient current capacity for the camera.

A camera may also become more likely to restart when its power demand increases. Features such as infrared illumination or other active functions can change the amount of power the camera requires.

Repeated restarting therefore does not automatically mean the camera needs replacing. The adapter, cable and connector should be checked before assuming that the camera hardware has failed.

Mini summary: Start with the power path. An unstable supply can make a working CCTV camera repeatedly reboot.

Can a Faulty or Underpowered Power Adapter Cause CCTV Restarts?

Yes. A faulty or underpowered 12V power adapter can cause unstable power delivery and repeated CCTV camera restarts.

The adapter’s voltage and current ratings both matter. If the camera requires 12V DC, the adapter should provide 12V DC. It should also have sufficient current capacity for the camera’s requirements.

For example, a camera requiring 12V 1A can generally use a compatible 12V adapter with a higher current capacity, such as 2A, provided the connector and polarity are correct. A higher current rating represents greater available capacity; it does not mean the camera is forced to consume the full rating.

The opposite situation is different. If the camera requires more current than the adapter can reliably provide, the supply may struggle to maintain stable operation.

A failing adapter can also cause intermittent problems even when its printed specifications appear suitable. Physical damage, unusual heat or repeated power interruptions can indicate that the adapter needs further investigation.

For equipment requiring a compatible 12V 1A supply, the 12V 1A CCTV power adapter is a relevant product to compare with the camera’s original specification.

Mini summary: Check both the adapter’s voltage and current capacity before assuming the CCTV camera is faulty.

Can a Long Cable or Loose Connection Cause the Camera to Restart?

Yes. A long or damaged cable and a loose DC connection can affect power delivery and may contribute to repeated CCTV camera restarts.

A long cable run can introduce voltage drop because electrical resistance causes some voltage to be lost along the cable. The effect depends on factors including cable characteristics, length and the equipment’s power requirements.

A damaged cable can create intermittent power problems as well. Inspect the cable for cuts, damaged insulation, worn connectors, loose joins or other visible deterioration.

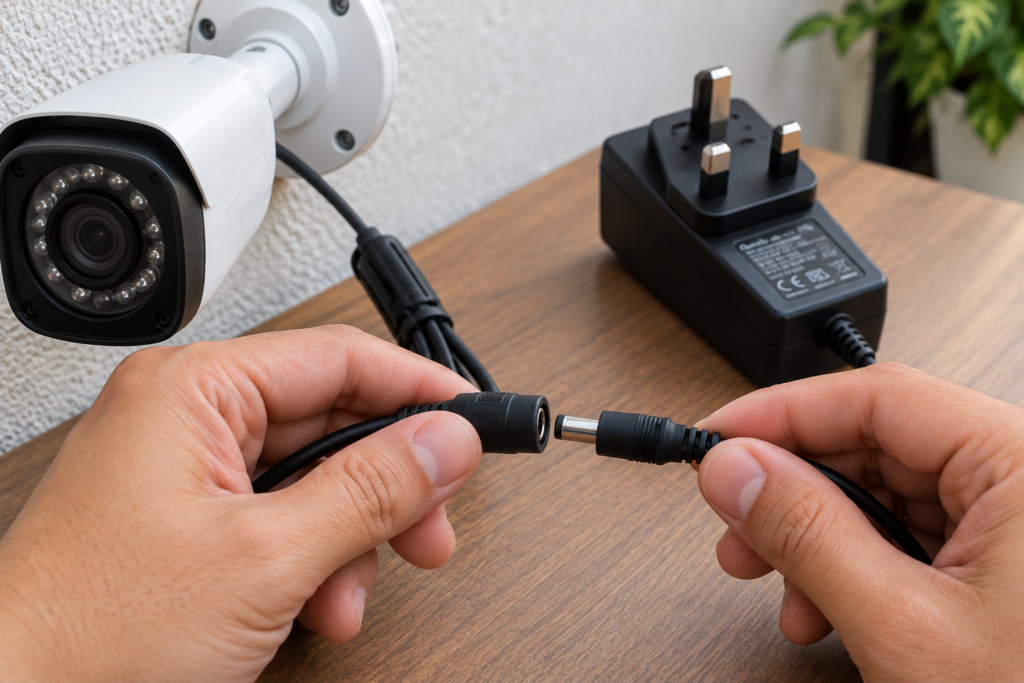

The DC connector should also fit securely into the camera’s power input. A loose connection can briefly interrupt the electrical supply, causing the camera to reboot.

Connector compatibility is more than physical fit. The connector dimensions and polarity must match the camera’s requirements. An adapter that supplies 12V but has an incompatible connector or polarity can still be unsuitable.

Mini summary: If the adapter appears suitable, inspect the complete cable and connector path for interruptions or voltage loss.

Can Overheating Cause a 12V CCTV Camera to Restart?

Overheating can contribute to instability in electronic equipment, so temperature is worth checking when a CCTV camera repeatedly restarts.

Look at where the camera and power adapter are installed. Poor ventilation, direct sunlight, enclosed spaces or nearby heat sources can increase operating temperatures.

The timing of the restart can provide a useful clue. If the camera works normally when first switched on but begins restarting after prolonged operation, heat should be considered alongside the power supply.

The adapter should also have adequate ventilation. Avoid covering the adapter with materials that restrict heat dissipation, and inspect it for unusual heat or physical deterioration.

Overheating alone does not prove that the adapter or camera is faulty. It is one of several possible causes that should be investigated when the restarting pattern appears to be temperature-related.

Mini summary: Restarts that begin after extended operation make overheating another useful troubleshooting area.

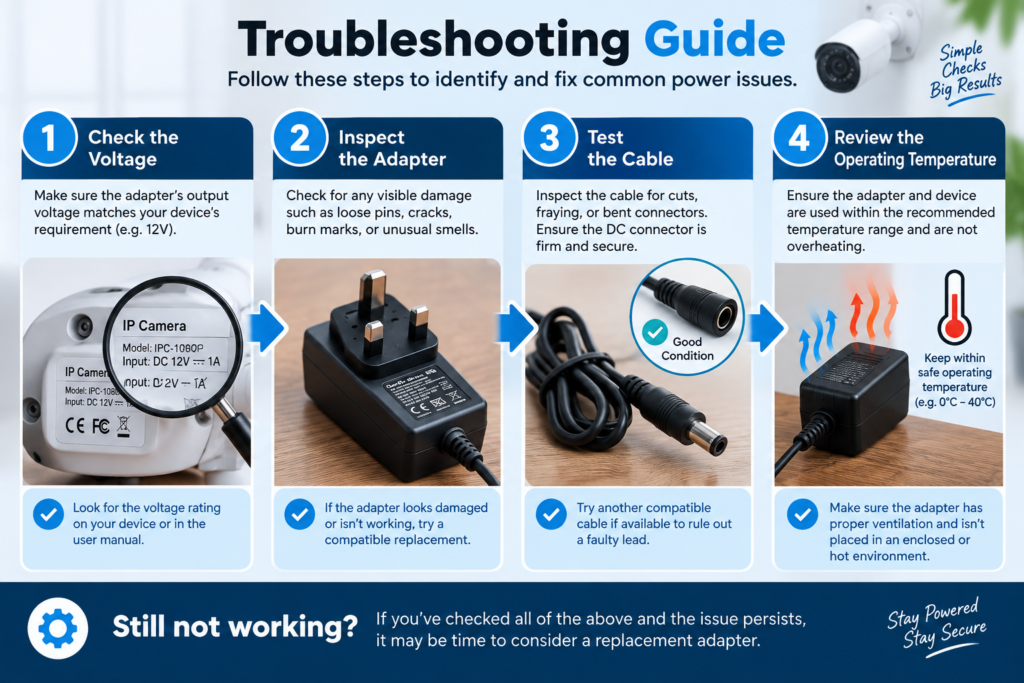

How Can You Troubleshoot a 12V CCTV Camera That Keeps Restarting?

Troubleshoot the power path from the adapter to the camera before replacing the camera itself. Check voltage, current capacity, connections, cable condition and temperature in sequence.

1. Check the camera’s voltage

Confirm the camera requires 12V DC and compare this with the adapter’s output rating.

2. Check current capacity

Make sure the adapter provides sufficient current capacity for the camera. Do not choose a replacement simply because it says 12V.

3. Inspect the adapter

Look for physical damage, unusual heat or other signs of deterioration. If available, testing with a known-compatible adapter can help isolate the problem.

4. Inspect the cable

Check for damage, loose connections, unnecessary extensions and signs of deterioration. Consider the cable length if the camera is positioned far from the power source.

5. Check the DC connector

Make sure the connector fits securely and that the dimensions and polarity are correct.

6. Check operating temperature

Inspect both the camera and adapter installation for excessive heat or poor ventilation.

7. Test with a compatible replacement

If the adapter is suspected, use a correctly matched replacement rather than simply choosing the highest amp rating available.

For example, where the equipment specification matches, the 12V 2A power supply compatible with QVIS CCTV systems can be compared with the existing supply.

For compatible Hikvision equipment, the 12V 2A power supply for Hikvision CCTV systems is another relevant product to compare against the equipment specification.

Mini summary: Work through the power path systematically so you can identify the likely cause before replacing working equipment.

When Should You Replace the CCTV Power Adapter?

Consider replacing the CCTV power adapter when its specifications do not meet the camera’s requirements, when it shows signs of damage or deterioration, or when testing indicates that it is causing unstable power.

Do not choose a replacement simply because it is labelled “12V”. Check the complete specification before connecting it.

The four key points are:

A higher current rating can generally be suitable when the voltage, connector and polarity are correct. A lower current rating should not be selected simply because the adapter also provides 12V.

For additional replacement options, the CCTV power adapters from Power Adapter Warehouse can be compared with the camera or DVR specification.

Mini summary: Replace the adapter based on complete compatibility, not the 12V label alone.

Frequently Asked Questions

Why does my 12V CCTV camera keep restarting?

A 12V CCTV camera may repeatedly restart because of unstable power, an unsuitable or failing adapter, voltage drop, a damaged cable, a loose connector, overheating or a camera fault. Start by checking the adapter and complete power path.

Can a weak power adapter cause a CCTV camera to reboot?

Yes. If an adapter cannot provide sufficient current capacity or is failing, the camera may experience unstable power and restart. Compare the adapter’s output specifications with the camera’s requirements.

Can a 12V 2A adapter replace a 12V 1A CCTV adapter?

Generally, yes. A compatible 12V 2A adapter can generally replace a 12V 1A adapter because it provides greater current capacity. The voltage, connector and polarity must still match.

Can a long cable cause a CCTV camera to restart?

A long cable can contribute to voltage drop depending on the cable and power requirements. If the camera is restarting over a long cable run, inspect the cable and connections and check whether adequate power is reaching the camera.

How do I know if my CCTV power adapter is faulty?

Repeated restarts, intermittent operation, physical damage or unusual heat can indicate a problem. Comparing the existing adapter with a known-compatible replacement can help determine whether the adapter is responsible.

Conclusion

A 12V CCTV camera that keeps restarting does not necessarily have a failed camera. An underpowered or failing adapter, cable-related voltage drop, loose connector or overheating can all contribute to repeated reboots.

Start by checking the camera’s required voltage and current, then inspect the adapter, cable and connector. If the power supply is unsuitable or faulty, replace it with a compatible 12V adapter that provides sufficient current capacity and has the correct connector and polarity.

The key is to check the complete power specification rather than choosing a replacement based on voltage or amperage alone.
