Choosing between a 12V 1A vs 12V 2A CCTV Power Adapter is a common consideration when replacing your camera’s power supply. Both provide 12V DC output, so they may look interchangeable. However, the current rating is only one part of compatibility.
You also need to check the connector size, polarity and the requirements of your CCTV camera, DVR or NVR.
In this guide, we explain the difference between 12V 1A and 12V 2A adapters, whether a 2A adapter can replace a 1A model, and what to check before buying a replacement.
Quick Answer

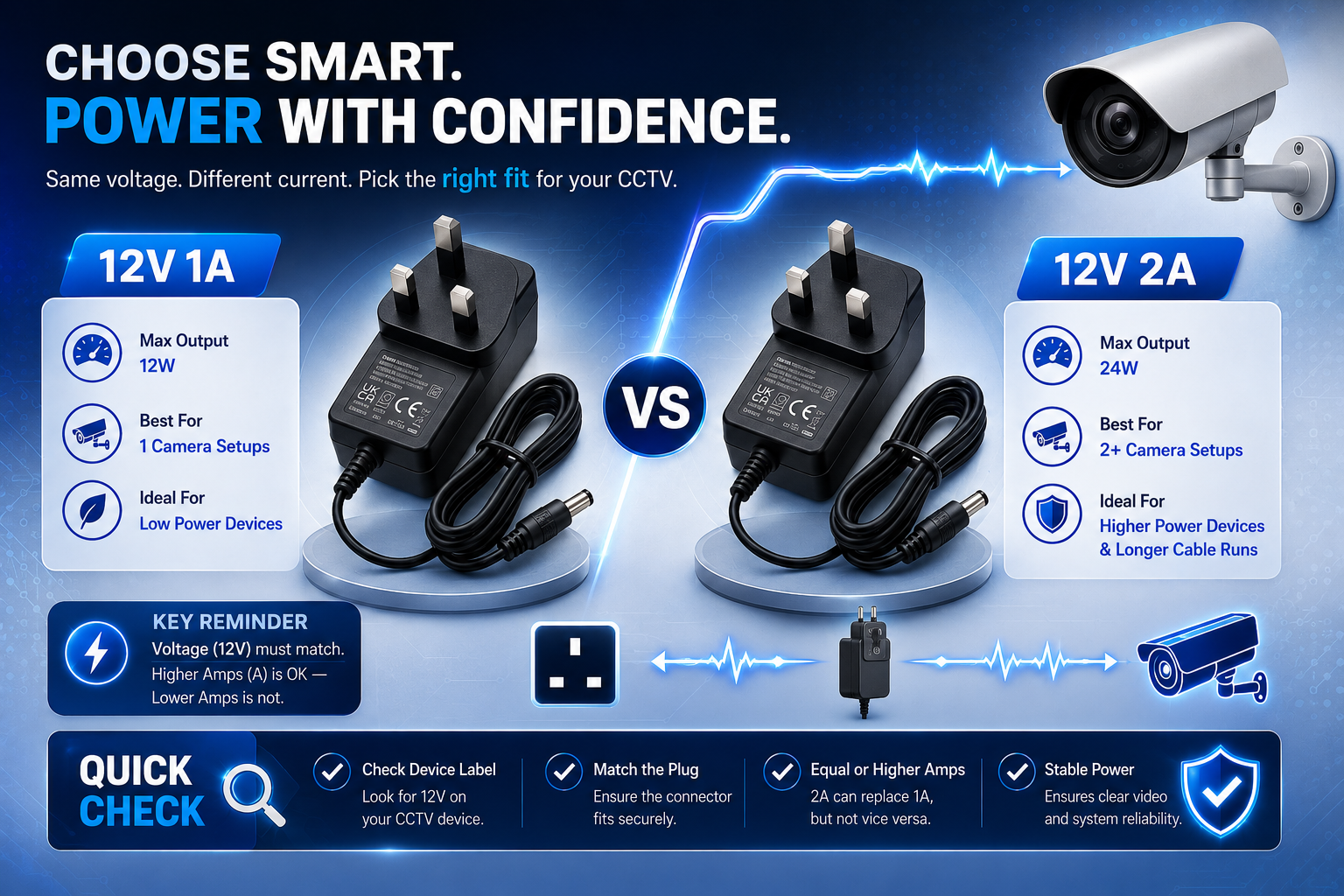

The main difference between a 12V 1A and 12V 2A CCTV power adapter is their maximum current capacity.
A 12V 1A adapter can supply up to 1 amp, while a 12V 2A adapter can supply up to 2 amps. The CCTV device normally draws only the current it needs.
As a general rule, a replacement should:
- Match the original voltage.
- Have the same or higher current rating.
- Use the correct connector size.
- Have the correct polarity.
- Be compatible with the CCTV equipment.
1. What Does 1A or 2A Mean?
The amp rating tells you how much current the power adapter can supply.
A 12V 1A adapter provides up to 1 amp of available current, while a 12V 2A adapter provides up to 2 amps.
The higher rating does not mean the adapter automatically pushes 2 amps into the camera. The equipment draws the current it requires.
For example, if a CCTV camera requires 12V and draws 0.8A, a compatible 12V 2A adapter has enough current capacity to supply it.
If your equipment specifies 12V 1A, a 12V 1A CCTV power adapter can be considered as a like-for-like replacement.
The important point is that the voltage, connector and polarity must also match.
2. 12V 1A vs 12V 2A CCTV Power Adapter: Can You Swap Them?
In many cases, yes. A 12V 2A adapter can replace a 12V 1A adapter when the voltage, connector size and polarity are compatible.
The higher current capacity can provide additional available power without forcing the camera to use the full 2 amps.
For example, a compatible 12V 2A CCTV power adapter may be suitable for equipment originally supplied by a 12V 1A adapter.
However, the voltage must remain correct. A higher current rating does not make a higher voltage safe.
For example, a 12V CCTV device should not be connected to a 19V adapter unless the manufacturer specifically confirms compatibility.
The opposite situation is more concerning. Replacing a 12V 2A adapter with a 12V 1A model may result in insufficient current, especially when the camera uses infrared night vision or other power-demanding features.
3. Four Things to Check Before Buying
Before choosing a replacement, check these four specifications.
1. Output Voltage
The replacement voltage should match the original.
If the CCTV equipment requires 12V DC, choose a 12V DC adapter.
2. Current Rating
The replacement should generally have the same or higher current capacity than the original.
For example:
- 12V 1A → 12V 1A or 12V 2A may be suitable.
- 12V 2A → 12V 2A or higher may be suitable.
- 12V 2A → 12V 1A may be insufficient.
3. Connector Size
CCTV equipment commonly uses DC barrel connectors, but their dimensions can differ.
A plug may look correct but still fail to fit securely or make the correct electrical connection.
A replacement CCTV power adapter must therefore have a connector that matches your equipment.
4. Polarity
Check the polarity symbol on the original adapter or equipment.
The replacement must use the correct positive and negative configuration.
These checks are more reliable than choosing an adapter based only on appearance.
4. How Do You Know Which Rating Your CCTV Needs?

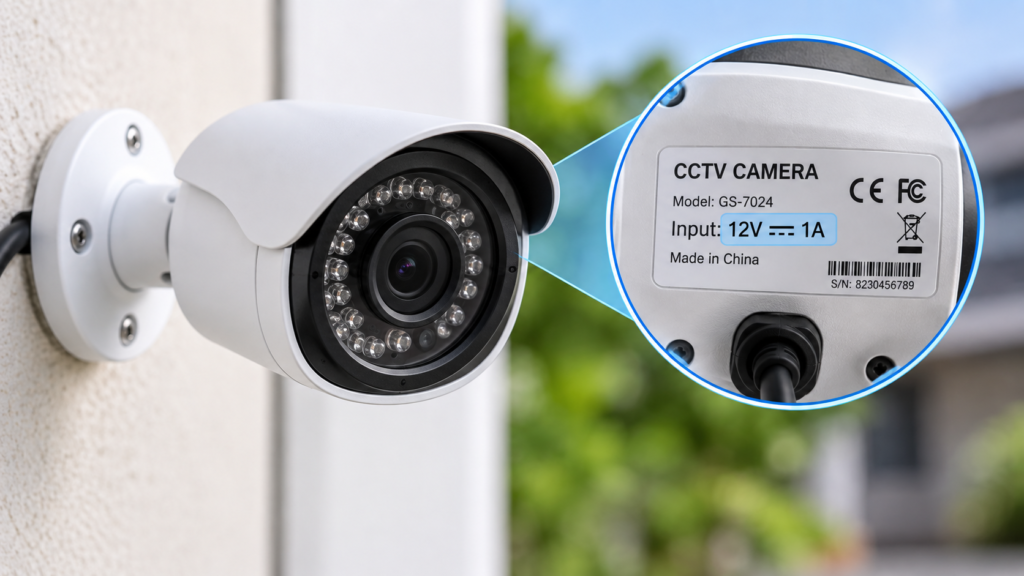

The easiest way to identify the required rating is to check the label on the original adapter.
You may see specifications such as:
Output: 12V DC 1A or Output: 12V DC 2A
If the original adapter is missing, check the label on the CCTV camera, DVR or NVR. You can also use the exact model number to find the manufacturer’s power requirements.
For equipment requiring 12V 1A, a 12V 1A power supply for CCTV cameras can be compared with the original specifications.
Do not assume that every CCTV camera from the same manufacturer uses the same power adapter.
5. Do CCTV Cameras Commonly Use 12V 1A or 12V 2A?
The required current depends on the individual equipment rather than the brand alone.
Some compact CCTV cameras may use 12V 1A, while equipment with additional features may require more current.
Infrared night vision, sensors and other integrated components can increase power requirements.
DVRs and NVRs can also have different requirements because they contain additional electronics and may support storage components.
For equipment requiring more available current, a 12V 2A CCTV power supply may be appropriate when it matches the manufacturer’s specifications.
For brand-specific equipment, always check the exact model. For example, a Swann CCTV power adapter should be selected according to the particular Swann camera or recorder.
Comparison Table
| Feature | 12V 1A Adapter | 12V 2A Adapter |
| Output Voltage | 12V DC | 12V DC |
| Maximum Current | Up to 1A | Up to 2A |
| Current Capacity | Lower | Higher |
| Typical Use | Lower-power CCTV equipment | Equipment requiring more available current |
| Can Replace 12V 1A? | Yes, when specifications match | Often yes, when specifications match |
| Can Replace 12V 2A? | Only if equipment requires 1A or less | Yes, when specifications match |
Troubleshooting Guide
| Problem | Possible Cause | Recommended Check |
| Camera will not power on | Incorrect adapter | Check voltage, current, polarity and connector |
| Camera keeps restarting | Insufficient current | Compare the replacement rating with the original |
| Night vision stops working | Increased power demand | Check whether sufficient current is available |
| Loose power connection | Incorrect connector size | Compare the connector dimensions |
| Unsure which adapter to buy | Original adapter missing | Check the device label or model number |
Before You Buy – Final Checklist
Confirm the following before purchasing:
- The output voltage is 12V DC.
- The equipment requires 1A or 2A.
- The connector size is correct.
- The polarity matches.
- The CCTV camera, DVR or NVR model number has been checked.
- The replacement is compatible with the equipment.
Frequently Asked Questions
Is a 12V 2A adapter better than a 12V 1A adapter?
Not necessarily. A 12V 2A adapter simply has a higher maximum current capacity. The correct adapter depends on your equipment’s requirements.
Can I replace a 12V 1A CCTV adapter with a 12V 2A adapter?
In many cases, yes. The voltage, connector size and polarity must match the equipment.
Can I use a 12V 1A adapter instead of a 12V 2A adapter?
A 12V 1A adapter may not provide enough available current for equipment designed to use 2A. Check the original specifications before making the replacement.
How do I know if my CCTV camera needs 1A or 2A?
Check the original adapter label or the specification label on the CCTV camera, DVR or NVR. The required current is usually listed next to the output voltage.
What happens if the adapter does not supply enough current?
The camera may fail to start, restart unexpectedly or become unstable, particularly when features such as infrared night vision increase power demand.
Final Thoughts
Choosing between a 12V 1A and 12V 2A CCTV power adapter is easier when you understand the current rating.
A 12V 2A CCTV DVR power adapter can often replace a 12V 1A adapter when the voltage, connector and polarity are correct. However, a lower-rated adapter may not provide enough current for equipment designed to use 2A.
Before purchasing, check the specifications on your existing adapter or CCTV equipment rather than choosing a replacement based only on appearance.
For model-specific equipment, compare the exact voltage, current, connector and polarity requirements with the replacement product.
